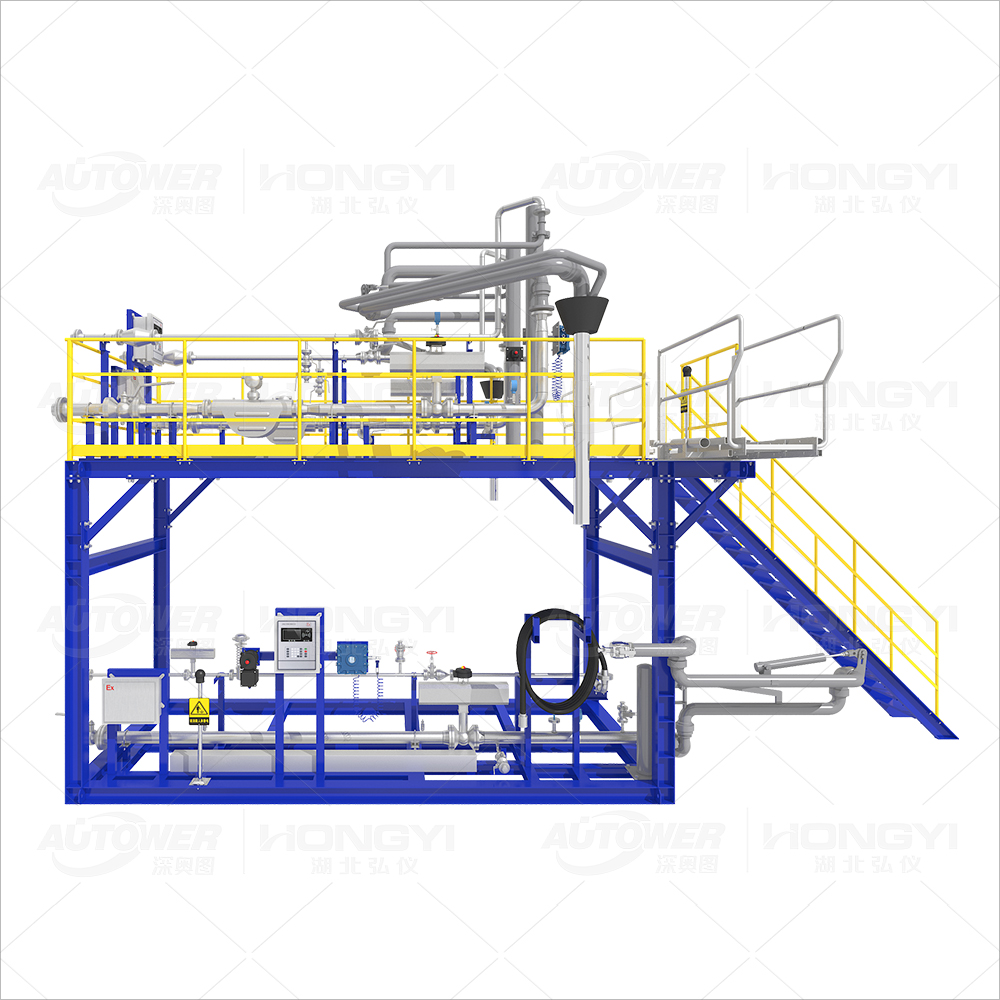

For the loading control system, the selection of control valve types and materials varies according to the different petrochemical liquid media being handled.

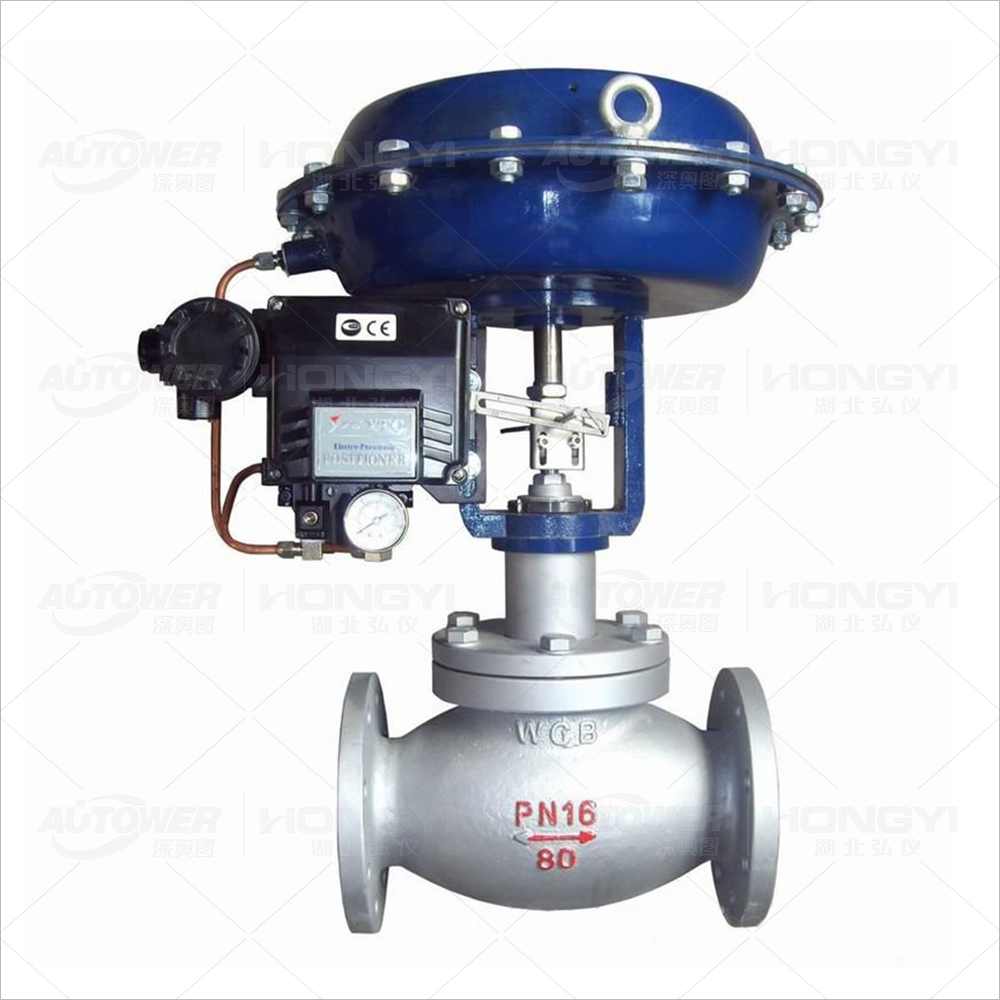

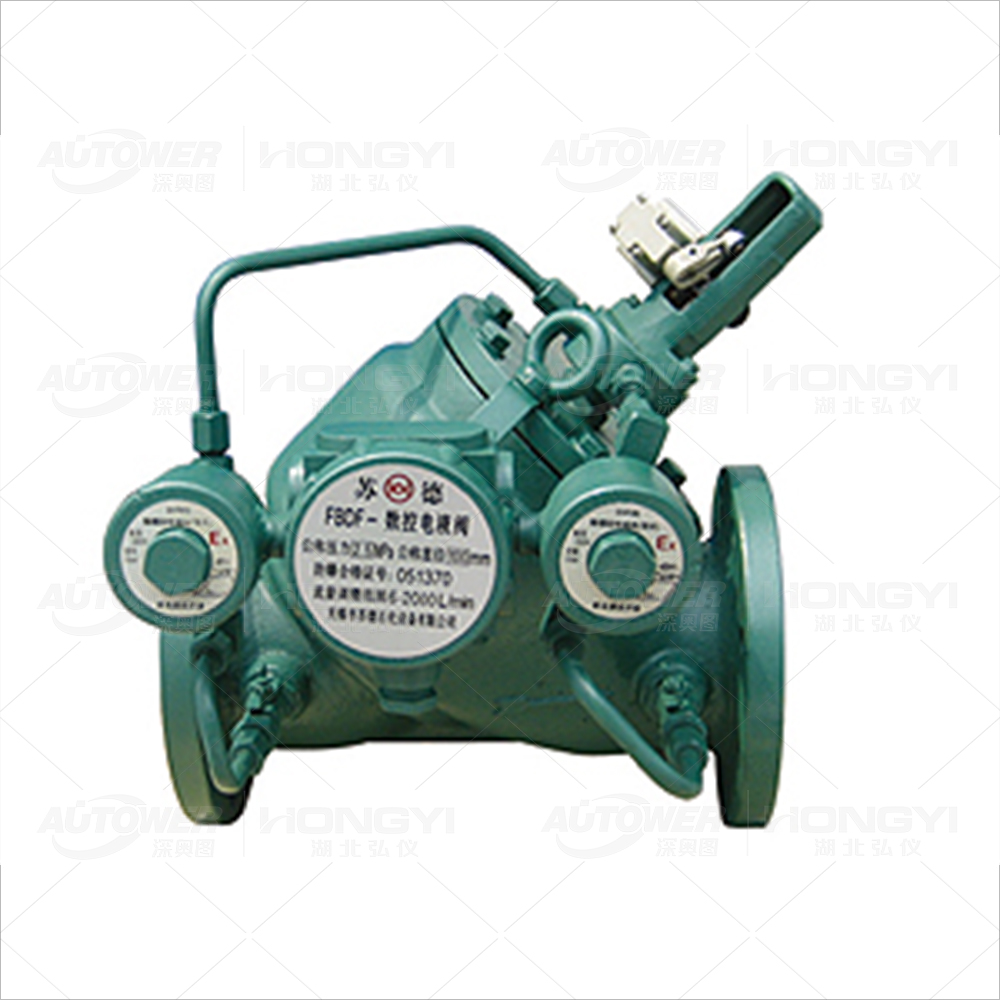

| Control valve | Pneumatic two-position control valve | Digital control valve |
 |
 |
 |

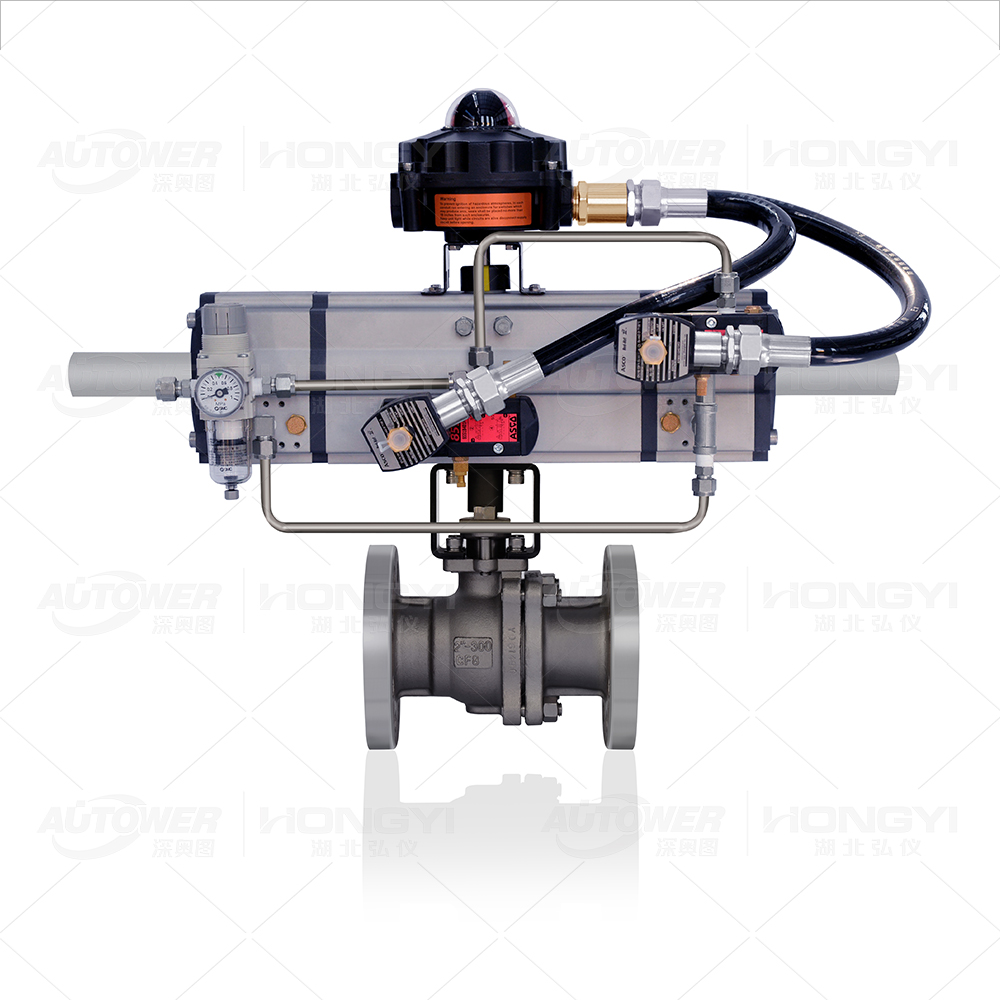

| Specification For Pneumatic two-position control valve | |||||||
| General | 1 | Tag.No. | |||||
| 2 | Service | ||||||
| 3 | P&ID No. | ||||||
| 4 | Line I.D/O.D | 89/80 | |||||
| 5 | Line Material | 20# | |||||
| 6 | Line No. | ||||||
| 7 | Quanlity | 2 | |||||
| Oper. Condition | 8 | Fluid Name | LPG | ||||
| 9 | Fluid State | gas-liquid two-phase | |||||
| 10 | Oper. Temper. | ||||||
| 11 | Oper. Pressure | 0.7 | |||||
| 12 | Max Shut Off DP | 0.8 | |||||
| Valve Body | 13 | Type | Pneumatic two-position control valve | ||||
| 14 | Model No. | DD240401* | |||||
| 15 | Manufacturer | OMAL | |||||
| 16 | Port Size | DN80 | |||||
| 17 | Nor Press. | CL 300 | |||||
| 18 | Conn. Type | Flange connection | |||||
| 19 | Flange Std. | ASME B16.5 CL300 DN80 | |||||
| 20 | Body Mat. | WCB | |||||
| 21 | Disc Material | SUS304 | |||||
| 22 | Stem Material | WCB | |||||
| 23 | Seat Material | PTFE | |||||
| 24 | Packing Material | PTFE | |||||
| 25 | Leakage Class | ANSI Class Ⅵ | |||||
| Actuator | 27 | Actuatur Type | Two-position double-acting | ||||
| 28 | Model No. | DD240401 | |||||
| 29 | Action | double-acting | |||||
| 30 | Air Press Min./Max. | 350KPa | 450KPa | ||||
| 31 | Lubrificat Ficator | 带 | |||||
| 32 | Air Conn. | Φ8*1 | |||||
| 33 | Handle Wheel | ||||||
| Accessories | 34 | Air Regulater | T-50 | ||||
| 35 | Solenoid Type | ASCO 2-way or 3-way solenoid valves | |||||
| 36 | Solenoid Model | EFG551* | |||||
| 37 | Power Supply | 24VDC | |||||
| 38 | Elec. Conn. Size | G1/2″NPT | |||||
| 39 | Limit Switch Type | SPDT | |||||
| 40 | Limit Switch Model | ALS-400 | |||||
| 41 | Exposion-Proof | Exd ⅡBT 4 | |||||
| 42 | Elec. Conn. Box | ||||||
| 43 | Remarks | ||||||
To enhance packaging quality, strengthen packaging management, and prevent product loss or damage during transit resulting from packaging-related issues, this Export Packaging Specification has been specifically formulated.
This specification applies to the packaging of all products exported by this Company.
| Requirement | Responsible Dept. | |
| Before Packaging | Confirm that the product has been tested and is free of defects. Confirm that the product’s exterior is clean and free of stains, standing water, or similar issues. | Quality Dept. |
| Product Packaging | 1. Skid-mounted and Containerized Packaging: A three-layer packaging system—comprising inner, intermediate, and outer packaging—is required. The packaging must be securely fastened and stable, providing effective protection for the product. a. Individual instruments on the skid must be protected with bubble wrap and tightly bound with stretch film. b. The entire skid must be protected with bubble wrap and tightly bound with stretch film. . Containers equipped with racks must be securely fastened using strapping bands. d. Loose piping must be wrapped in protective fabric to prevent paint damage from impact, and then placed onto a dedicated packing rack. Legend 2. Individual Packaging A three-layer packaging system—comprising inner, intermediate, and outer packaging—is required. The packaging must be securely fastened and stable, providing effective protection for the product. Inner Packaging: Foam wrap must be used to fully enclose the items, ensuring that no direct collision or friction occurs between products or between the products and the carton. Each individual item must bear both Chinese and English labels to facilitate inventory verification by the customer. Intermediate Packaging: Packed in cartons. Outer Packaging: Wooden crate packaging. The materials used must consist of plywood crates (fumigation-free) reinforced with steel strips. Any remaining space inside the box must be filled with cushioning material. For heavier products, particular attention should be paid to packaging strength to prevent damage during transit. | Production Dept / Warehousing & Logistics Dept |
| packaging | 1. Steel strips / wide wooden slats to wrap the 8 legs. Note: Wooden slat width: mm; thickness: mm. 2. 6–8 reinforcement points inside the box. 3. For any face exceeding 2 CBM, cross-bar or I-beam steel reinforcement is required. Note: The spacing between cross-bars/I-beams must be less than or equal to mm. 4. All packaging must include forklift access points to facilitate loading and unloading. 5. Packaging must be designed based on the dimensions of the container; under no circumstances should it exceed the container’s length, width, or height. | Warehousing & Logistics Dept |
| Shipping Mark | In accordance with the accompanying documentation, affix the shipping marks and packing lists to the front and sides, respectively . | Warehousing & Logistics Dept |
| Packaging Markings | Fragile, Keep Dry, This Side Up. Labels must be clear and securely affixed. | Warehousing & Logistics Dept |
| Instruction Manual placement | You must include: an instruction manual (either entirely in English or bilingual English-Chinese), a Certificate of Conformity, and a test report. (Note: No documents may be submitted exclusively in Chinese.) | Quality Dept |
| Take photos for the archive. | The packaging process must be documented via photographs or video recordings, and relevant information retained. All photographic and video files must be date-stamped and subsequently archived. | Warehousing & Logistics Dept |
